400 TON Melamine Crockery Making Machine For Tableware Pressing

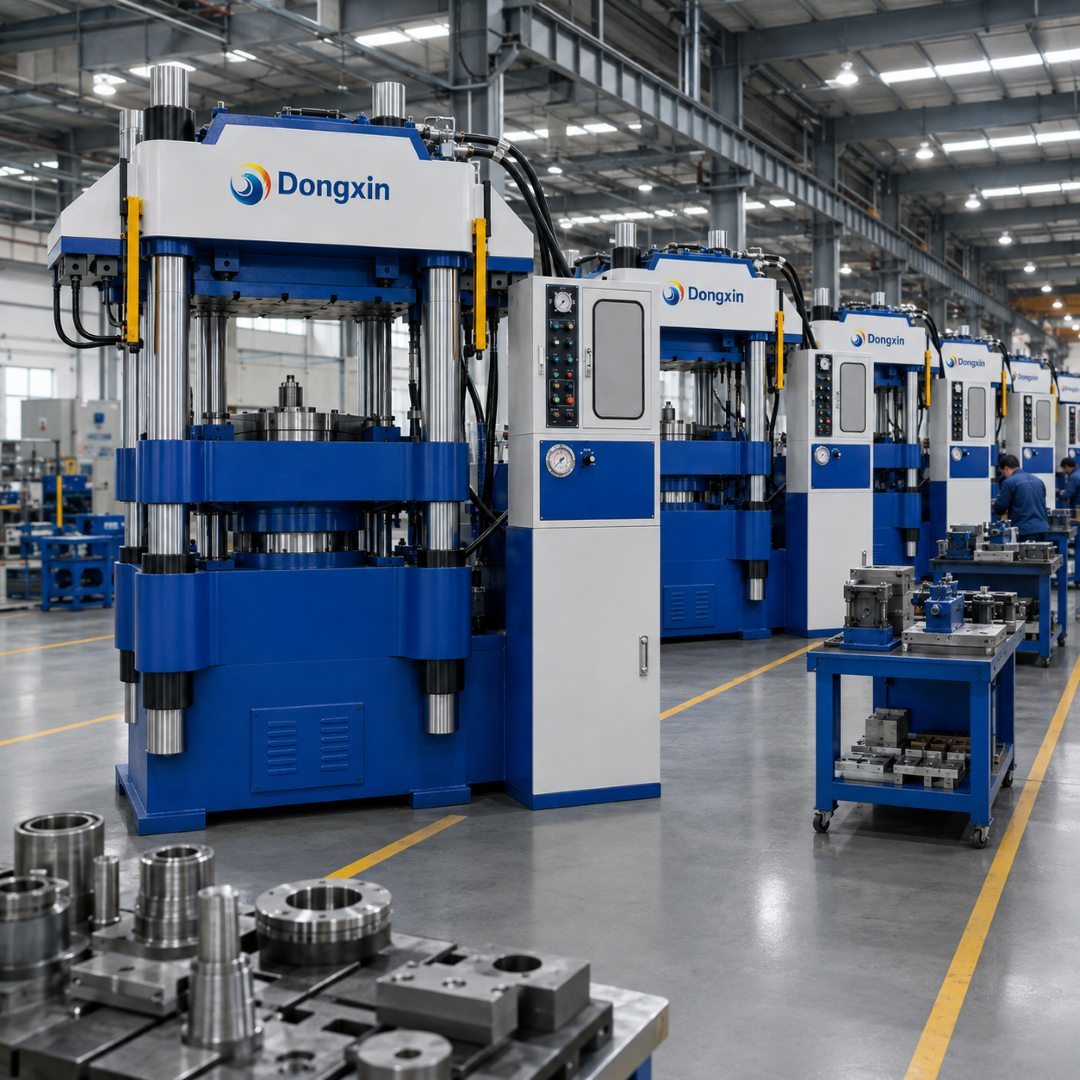

Dongxin Melamine Crockery Machine is a heavy-duty automatic hydraulic compression molding press specifically engineered for manufacturing high-quality melamine tableware. Available in 200-ton, 250-ton, 300-ton, and 350-ton clamping force configurations, this PLC-controlled pressing machine transforms melamine molding compound (MMC), urea molding compound (UMC), and bamboo fiber materials into durable, food-safe dinnerware including plates, bowls, cups, spoons, and trays.

With Taiwan-upgraded hydraulic technology and precision-engineered casting components, Dongxin machines deliver stable vertical pressure up to 210 kg/cm², ensuring perfect mold filling and eliminating common defects like insufficient curing, burrs, or dimensional inconsistencies.

Constructed from Grade 50 nodular cast iron (ductile iron) with heat-treated tension columns (Ø90mm-Ø120mm), the Dongxin press frame withstands high off-center loads without deformation. This heavy-duty construction ensures 15+ years service life, significantly outperforming standard cast iron alternatives.

• 200-250 ton models: High/low-pressure loop system with smooth, noise-free operation
• 300-350 ton models: Yuken double proportional valve (Japan) enabling infinite adjustment of speed and pressure during pressing cycle
• Maximum air release frequency: Up to 99 times for complete degassing, preventing bubbles and ensuring dense, strong tableware

• Delta PLC options with 7-inch color touchscreen
• 100+ product formulas storage capacity for quick mold changeover
• Three-level permission management: Operator, Engineer, Administrator
• Real-time monitoring: Temperature, pressure, cycle time, production count
• Fault diagnosis: Automatic alarm system with troubleshooting guidance

• Electric heating plates made from 45# steel with chrome plating
• Temperature range: Room temperature to 180°C (adjustable per material specification)
• Uniform heat distribution: Prevents hot spots that cause warping or incomplete curing
• Fast preheating: Reduces startup time and energy consumption

• Photoelectric safety grating: Protects operators during mold closing
• Emergency stop buttons: Multiple locations for immediate shutdown
• Mold protection: Slow-speed mold closing initially, then high-speed synchronization to prevent damage
• Automatic ejection: Ensures smooth product removal without manual intervention

The machine can produce melamine plates, bowls, cups, trays and customized tableware products.

The 500T pressing force provides stable molding performance for larger and more complex melamine products.

Yes. Customized molds can be supplied according to different product designs.

Yes. The PLC control system simplifies operation and allows accurate parameter adjustment.

Yes. We provide installation guidance, operation training and after-sales technical support.
